BTNL9 exerts anti-cancer effects by inhibiting CDC20 to induce G2/M arrest in pancreatic cancer

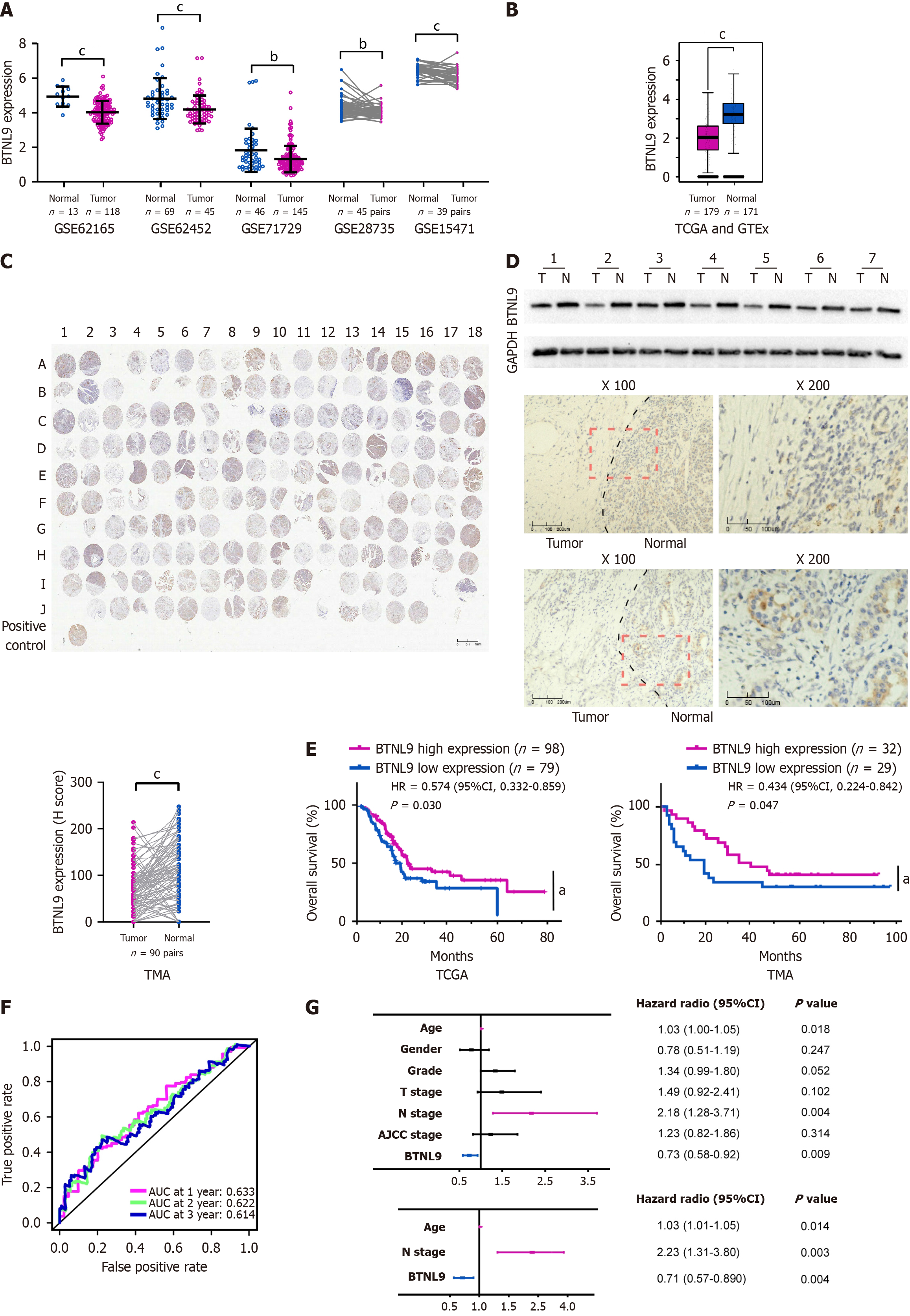

Figure 1 The expression level of BTNL9 in pancreatic cancer and its relationship with prognosis. A: Differential expression of BTNL9 in pancreatic cancer (PC) and adjacent non-cancerous tissues across five data sets from the Gene Expression Omnibus; B: The expression of BTNL9 in cancer and normal pancreas was different analyzed in Gene Expression Profiling Interactive Analysis; C: The expression level of BTNL9 in the tissue microarray detected by immunohistochemistry (the odd-numbered columns are tumor tissues, and the even-numbered columns are adjacent normal tissues); D: Expression level of BTNL9 in 7 cases with PC in our hospital; E: Based on The Cancer Genome Atlas and tumor microarray data, the prognostic differences of different BTNL9 expression levels; F: The predictive efficacy of BTNL9 expression for overall survival; G: The expression of BTNL9 was an independent factor affecting overall survival in patients with PC. ^aP < 0.05, ^bP < 0.01, ^cP < 0.001. TCGA: The Cancer Genome Atlas; GTEx: Genotype-Tissue Expression Project; TMA: Tissue microarray; AUC: Aera under the curve; HR: Hazard ratio; CI: Confidence interval; AJCC: American Joint Committee on Cancer.

Figure 2 Effects of BTNL9 expression on proliferation and metastasis of pancreatic cancer cells. A: Expression of BTNL9 in common pancreatic cancer (PC) cell lines; B: Establishment of stable PC cell model of BTNL9 overexpression; C: The effect of BTNL9 expression on cell proliferation assessed by CCK8 assay; D: The clone formation assays analyzed the effect of BTNL9 expression on cell clonogenesis; E: The EdU experiment showed a decrease in the proportion of EDU-positive cells by overexpressing BTNL9; F: Transwell experiment showed the migration and infiltration ability decreased when BTNL9 was overexpressed. ^aP < 0.05, ^bP < 0.01, ^cP < 0.001.

Figure 3 Effect of BTNL9 expression on pancreatic cancer cell cycle. A: Flow cytometry detected BTNL9 overexpressed cells arrested at G2/M phase; B: Xenograft tumor models showed decreased tumorigenic ability of BTNL9-overexpressing cells; C: Immunohistochemistry results of xenograft tumor tissue; D and E: Differentially expressed genes detected by RNA sequencing; F: BTNL9 overexpression showed significant enrichment of cell cycle signaling pathway; G: Expression of cell cycle related genes in two groups of cells. ^aP < 0.05, ^bP < 0.01, ^cP < 0.001. HE: Hematoxylin and eosin.

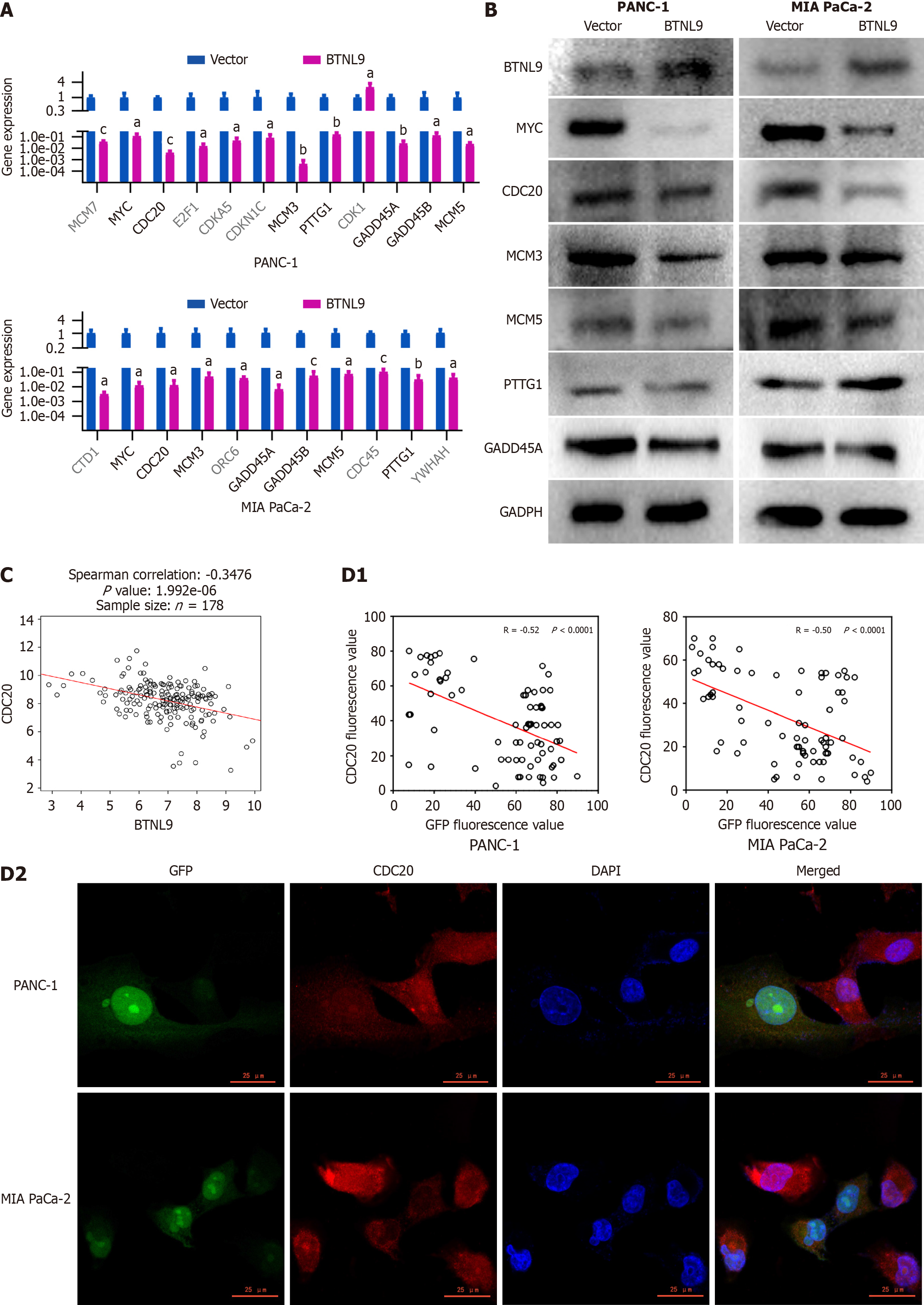

Figure 4 Regulation of BTNL9 expression on downstream molecules. A: Reverse transcription quantitative PCR results of cell cycle related genes; B: The protein expression levels of genes with significant differences in reverse transcription quantitative PCR validation were detected by Western blot; C: Correlation analysis of CDC20 and BNTL9 expression in The Cancer Genome Atlas RNA sequencing data of pancreatic cancer; D: The expression of BTNL9 and CDC20 in pancreatic cancer cells with BTNL9 overexpression detected by immunofluorescence (green = green fluorescence protein; red= CDC20). ^aP < 0.05, ^bP < 0.01, ^cP < 0.001. GFP: Green fluorescence protein.

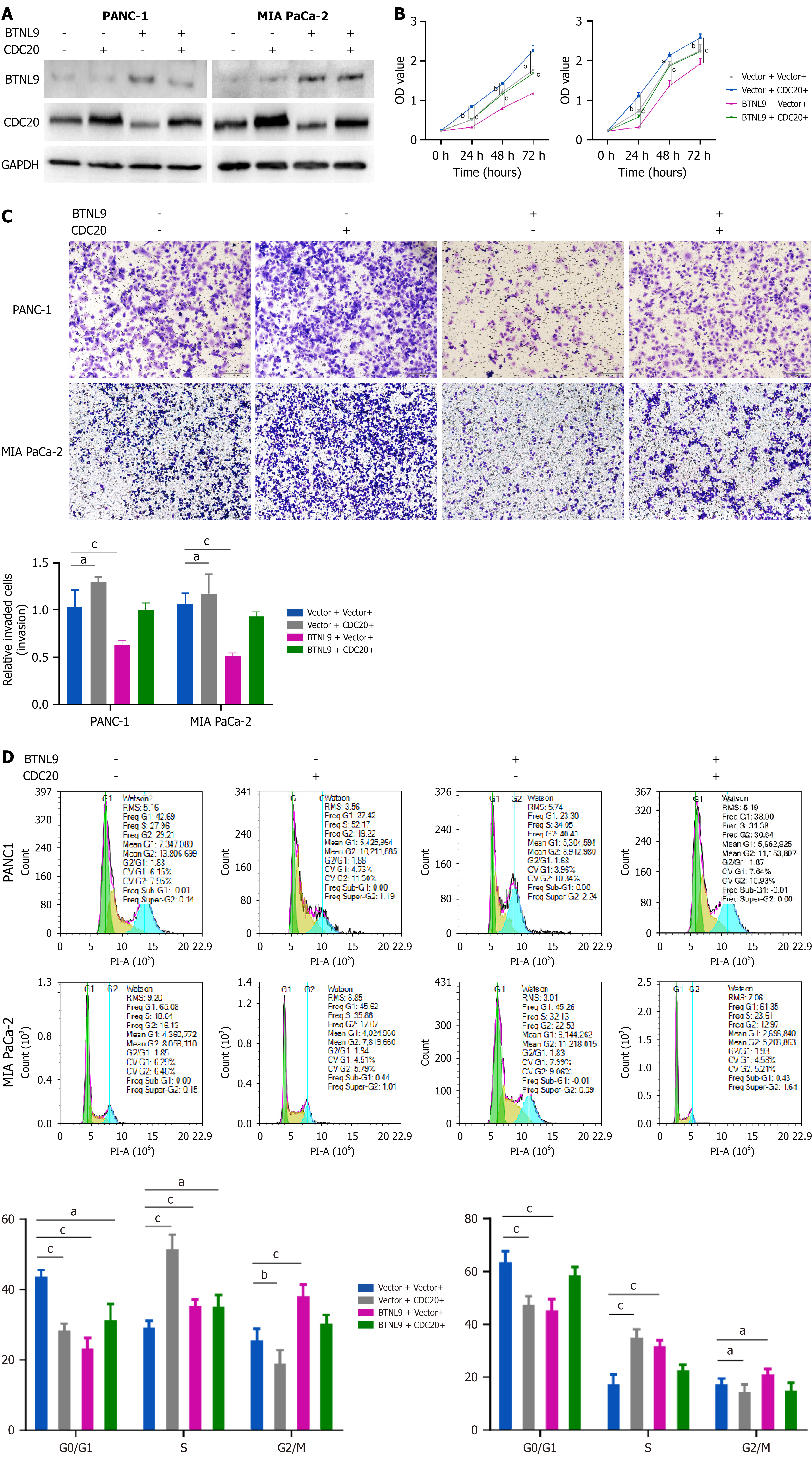

Figure 5 Effects of BTNL9/CDC20 on proliferation, migration, and cell cycle of pancreatic cancer cells. A: Pancreatic cancer cells were transfected with BTNL9 and CDC20; B: The proliferative ability of four types of cells in the CCK8 assay; C: Transwell assay was used to analyze the migration capacity in four types of cells; D: The cell cycle distribution of cells was measured by flow cytometry. ^aP < 0.05, ^bP < 0.01, ^cP < 0.001.
