Advances in portal pressure measurement: Endoscopic techniques, challenges, and implications for liver transplantation

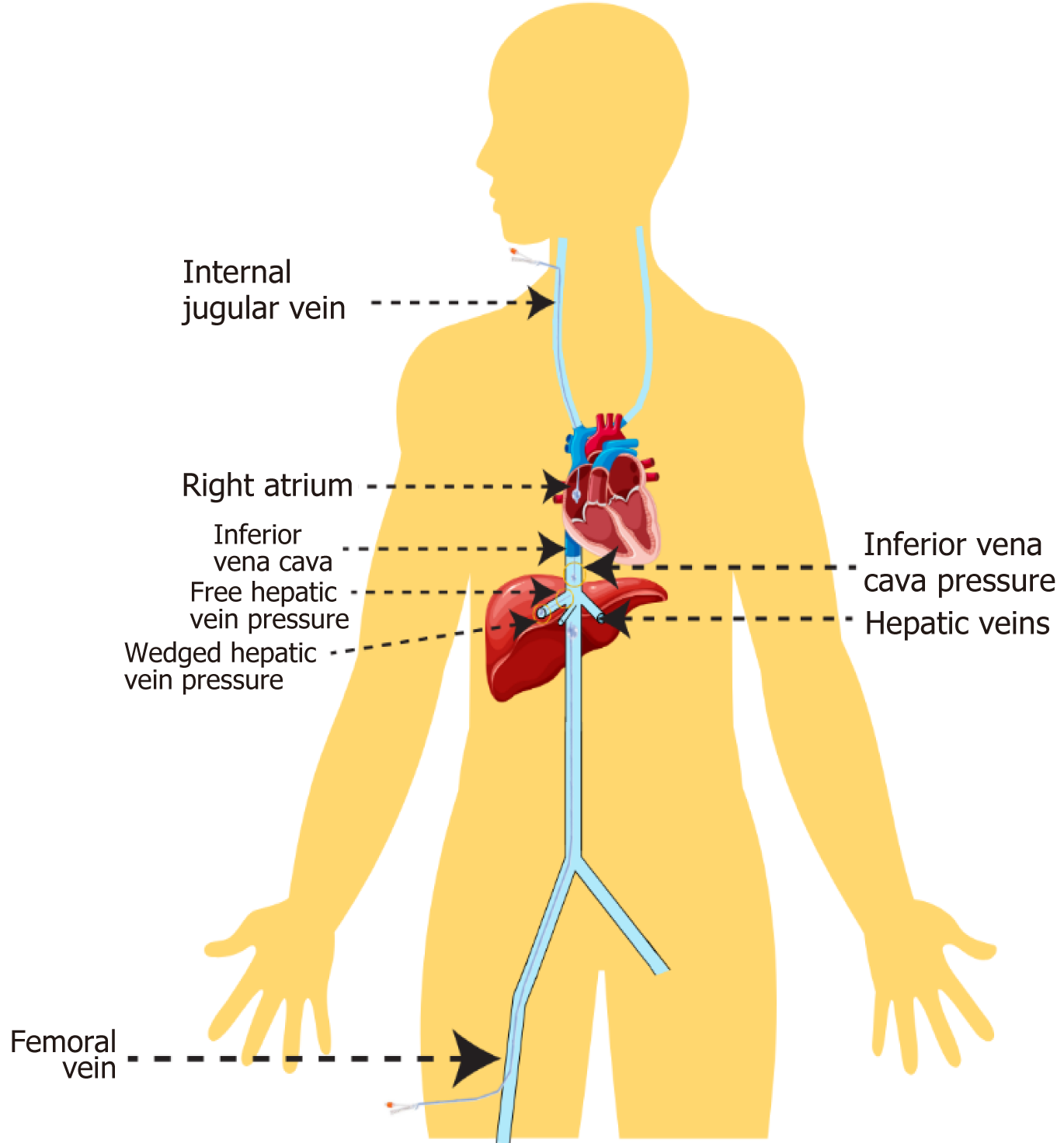

Figure 1 Technique of doing hepatic venous pressure gradient measurement. Hepatic vein (HV) pressure gradient measurement can be conducted using various approaches, including the trans-jugular, transfemoral, or peripheral antecubital vein method. Free HV pressure is measured by positioning the pressure-sensitive catheter at the distal portion of HV without occluding flow, while wedged HV pressure is measured by occluding blood flow by inflating the balloon catheter, thus providing a standing column to the portal via the hepatic sinusoid. HV pressure gradient measurement = wedged HV pressure - free HV pressure.

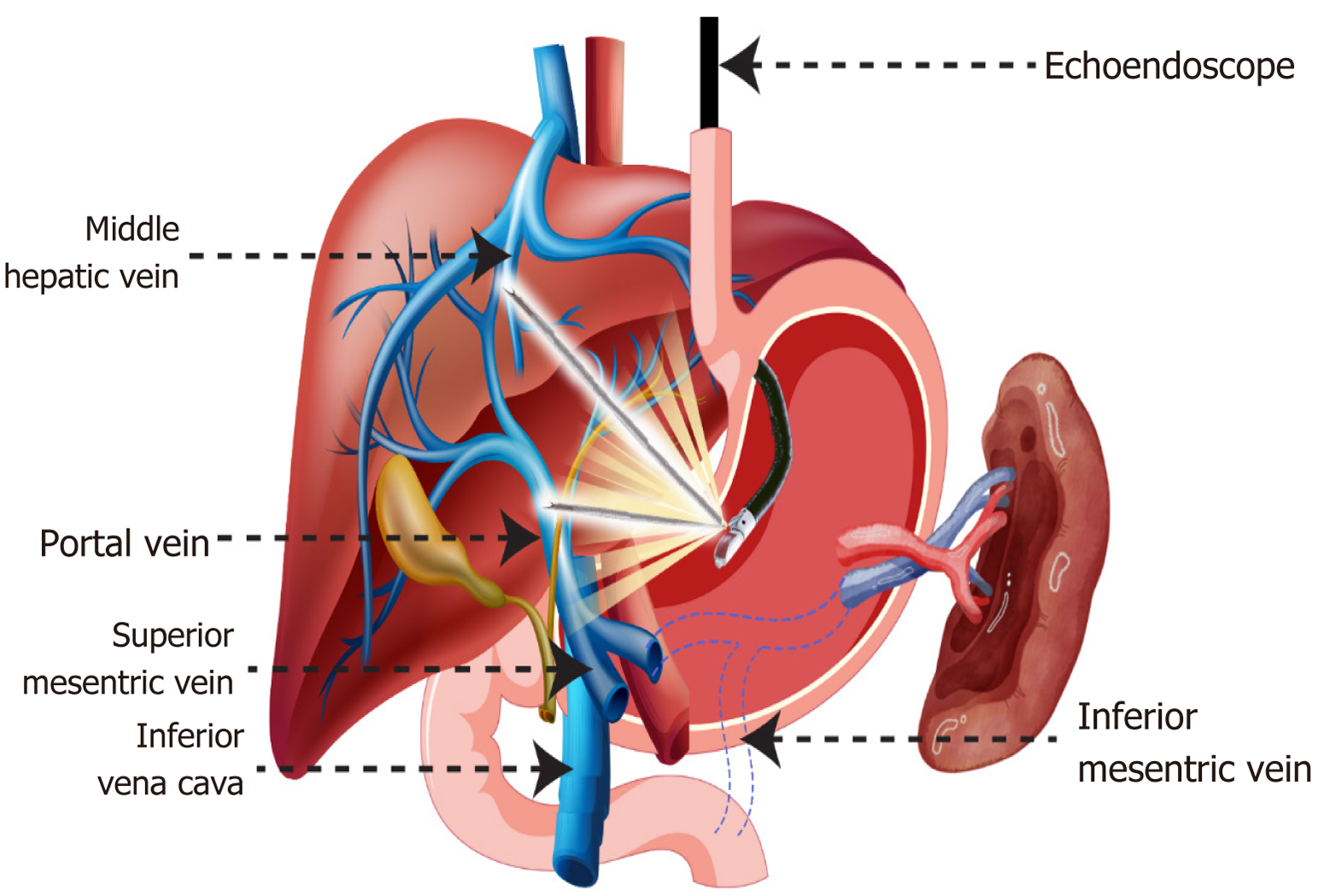

Figure 2 Technique of doing endoscopic ultrasound guided portal pressure gradient measurement. The hepatic vein (HV) is usually punctured first followed by the portal vein (PV). Middle HV and umbilicated portion of the left PV are the preferred site of puncture respectively due to larger calibre and better alignment using a 22G or 25G fine needle aspiration (FNA) needle. The FNA needle is attached to the non-compressible tubing which is then attached to either compact manometer or the conventional electro-cardiogram monitor depending upon availability. With patient in supine position and pressure transducer kept at the level of mid-axillary line, three sequential readings are taken for each vessel for 60 seconds and mean calculated.
